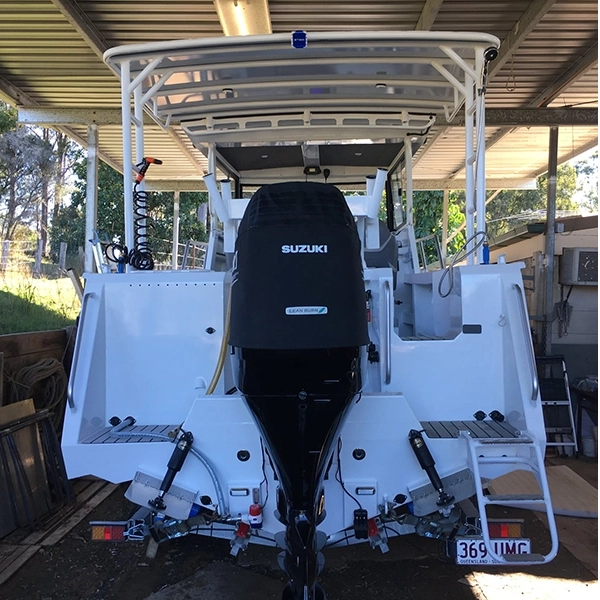

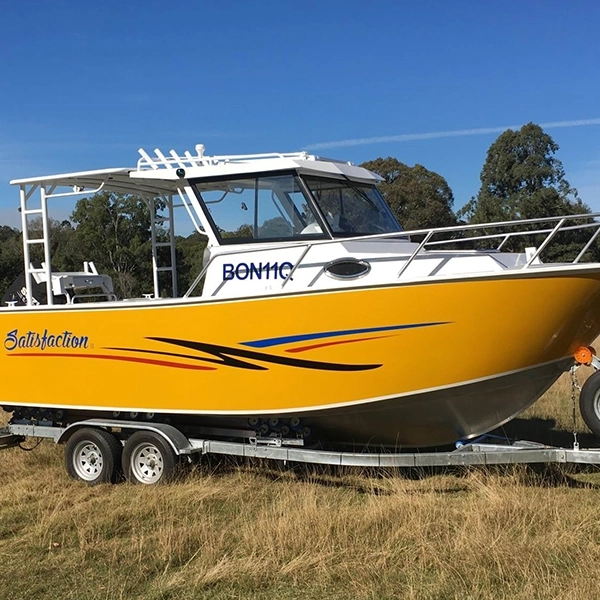

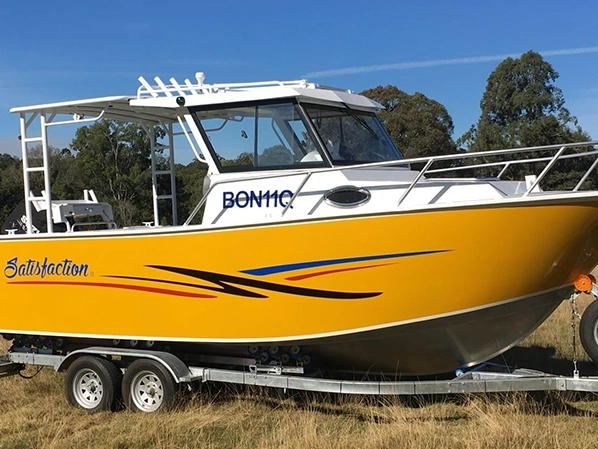

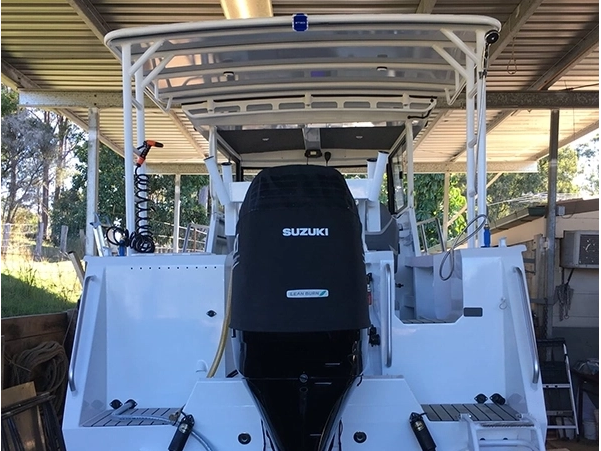

6.85m Cuddy Cabin

Product Description
Length of the hull 6.25m 6.85m 7.5m
Beam 2.3m 2.45m 2.45m
Depth 1.45m 1.45m 1.45m
Thickness of Bottom   sides 5mm 6mm 6mm
Thickness of Top   sides 4mm 5mm 5mm
Thickness of   Transom 5mm 5mm 6mm
Transom shaft 25” 25” 25”
weight(boat only   kg) 1350kgs 1550kgs 1800kgs
Recommend Engine   Power 150-200hp 175-250hp 200-350hp
Number of   people(Basic) 6 7 8
Warranty for boat   hull :  3 years 3 years 3 years

Bow Roller yes yes yes
Fast draining   Anchor well yes yes yes
Extruded Side Decks yes yes yes
Aluminum rod   holders in side deck yes yes yes
side Storage   pockets  yes yes yes
Rails and handles yes yes yes
Cuddy cabin  yes yes yes
Rest Bunk yes yes yes

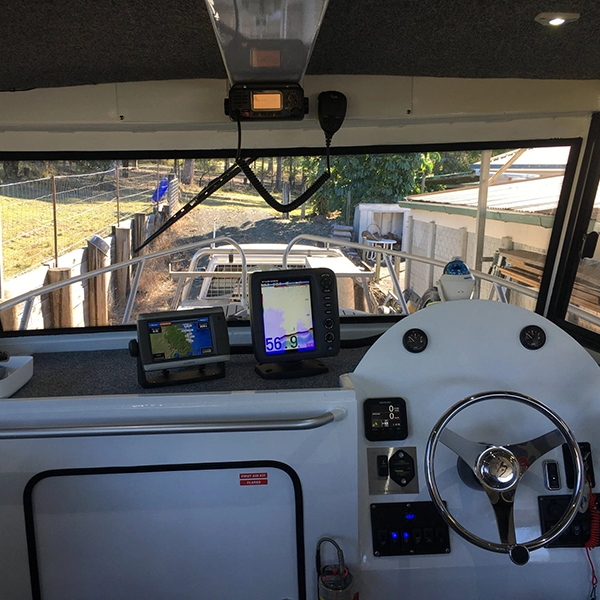

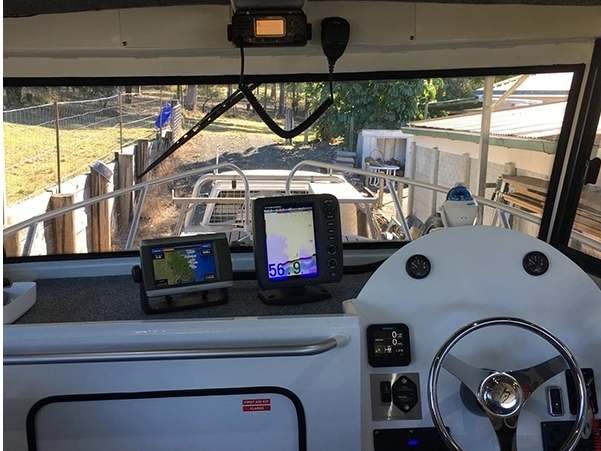

Console Dash with   fuel gauge yes yes yes

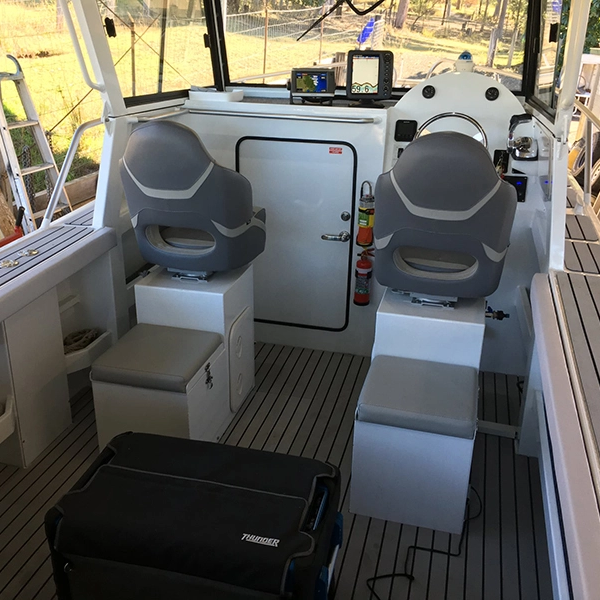

Quality driver and   passenger seat yes yes yes
Rocket launcher on   hard top yes yes yes

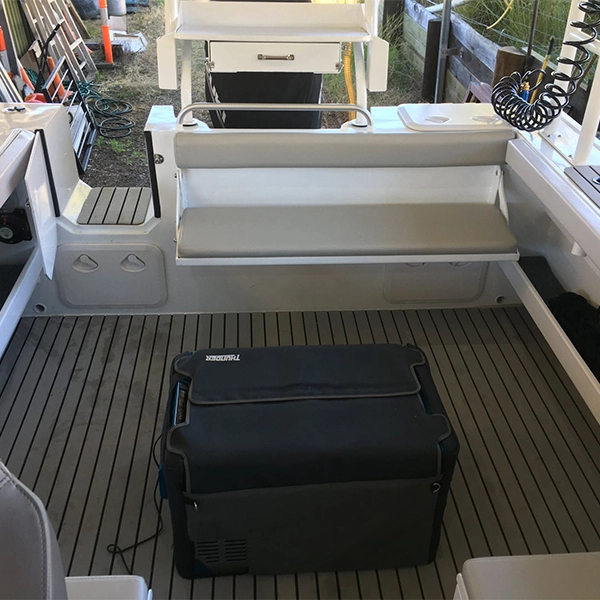

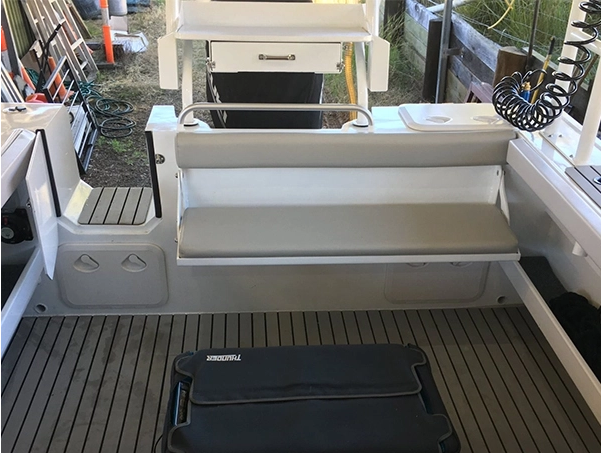

Folding rear seat yes yes yes
Floor:aluminum   checker plate yes yes yes
Battery Box(two) yes yes yes
Self draining deck   with scuppers yes yes yes
Bilge Pump yes yes yes
Large buoyancy   tanks(5) yes yes yes
Double Chines yes yes yes
Transducer/Trim   tabs mounting plate yes yes yes
rear ladder yes yes yes
Fuel tank  200L 300L 360L
kill tank 120L 120L 120L
Live bait tank 30L 30L 30L
Cutting Bait board   with rod holders yes yes yes
Painting:Two Tone yes yes yes
LED   Navigation light
yes yes yes
LED cabin light yes yes yes
LED Anchor light yes yes yes
Switch control   Panel  yes yes yes
1) Hydraulic steering system
2) Pump system for live bait tank, fish tank and deck washing
3) Marine Toilet system
4) upgrade to damping Seat
5) Cushions for rest bunk
6) Floor:upgrade to EVA Teak Floor
7) Anti slip sticker on gunwale, rear and bow
8) Add a door for rest bunk
9) upgrade to full closed windscreen
10) Deck light
11) Search light
10) Electric winch
11) Compass
12) Boat Trailer
